Jupiter Nano
– Tiny, high-performance computer
– Runs Linux or NuttX RTOS
– 10x the power of the most powerful Arduino
Coming Soon on Crowd Supply!

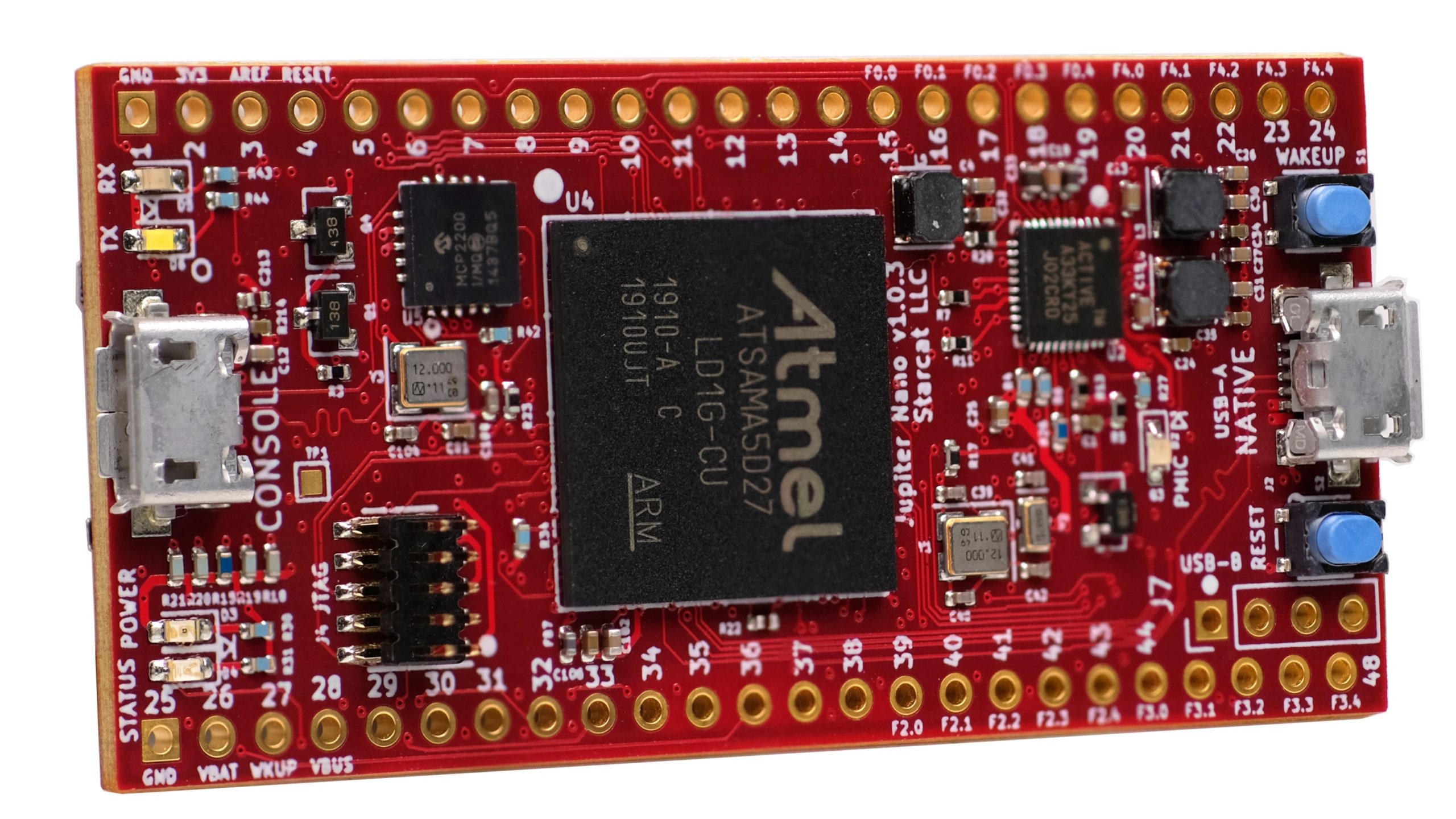

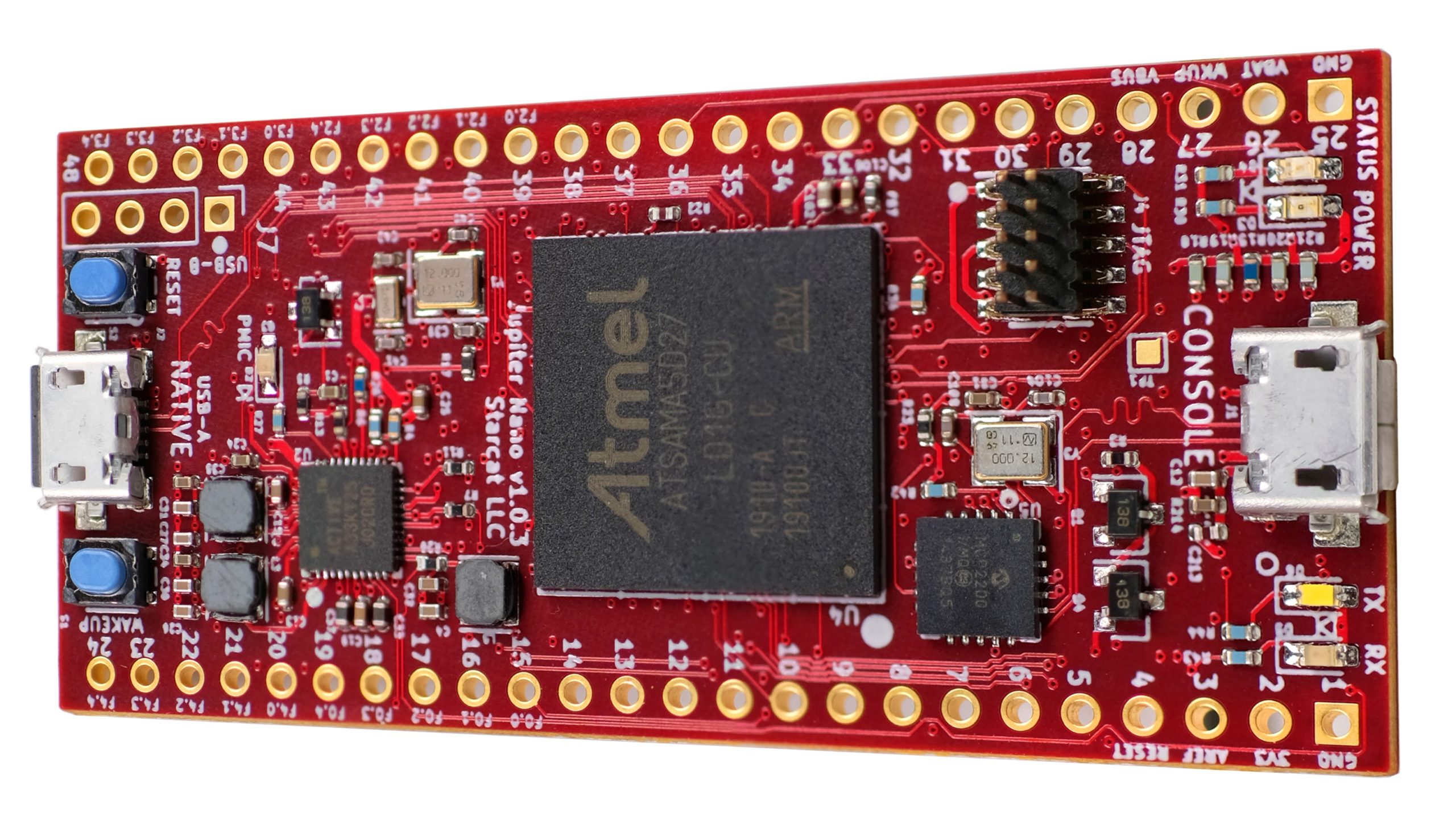

Jupiter Nano
- High-power, Open Source Hardware development board
- 10x more powerful than the the most powerful Arduino
- 7x clock speed of the Arduino Due
- 1280x RAM of Arduino Due
- Key peripherals use DMA (USB, SPI, I2C, Flexcom)
- Runs NuttX RTOS, Linux, or MicroPython
- Tiny 48-pin form factor (1.125″ x 2.5″), 40 I/O pins
- CPU: 498 MHz Microchip SAMA5D27C-LD1G (ARM Cortex A5)
- DRAM: 128MB integrated into system-in-package (SIP)
- Power management: Quorvo ACT8945 with LiPo battery charging capability
- USB: 2x USB 2.0 HS port, 480Mbps (1 host or device, 1 on header, host only) 1x USB 2.0 FS Debug console, 12Mbps
- SD Card: 50MHz DDR boot device (cannot be bricked)
- Ports: Native SPI and I2C, 4 Flexcoms (UART, SPI, I2C)
- JTAG: JTAG port for programming and debugging
